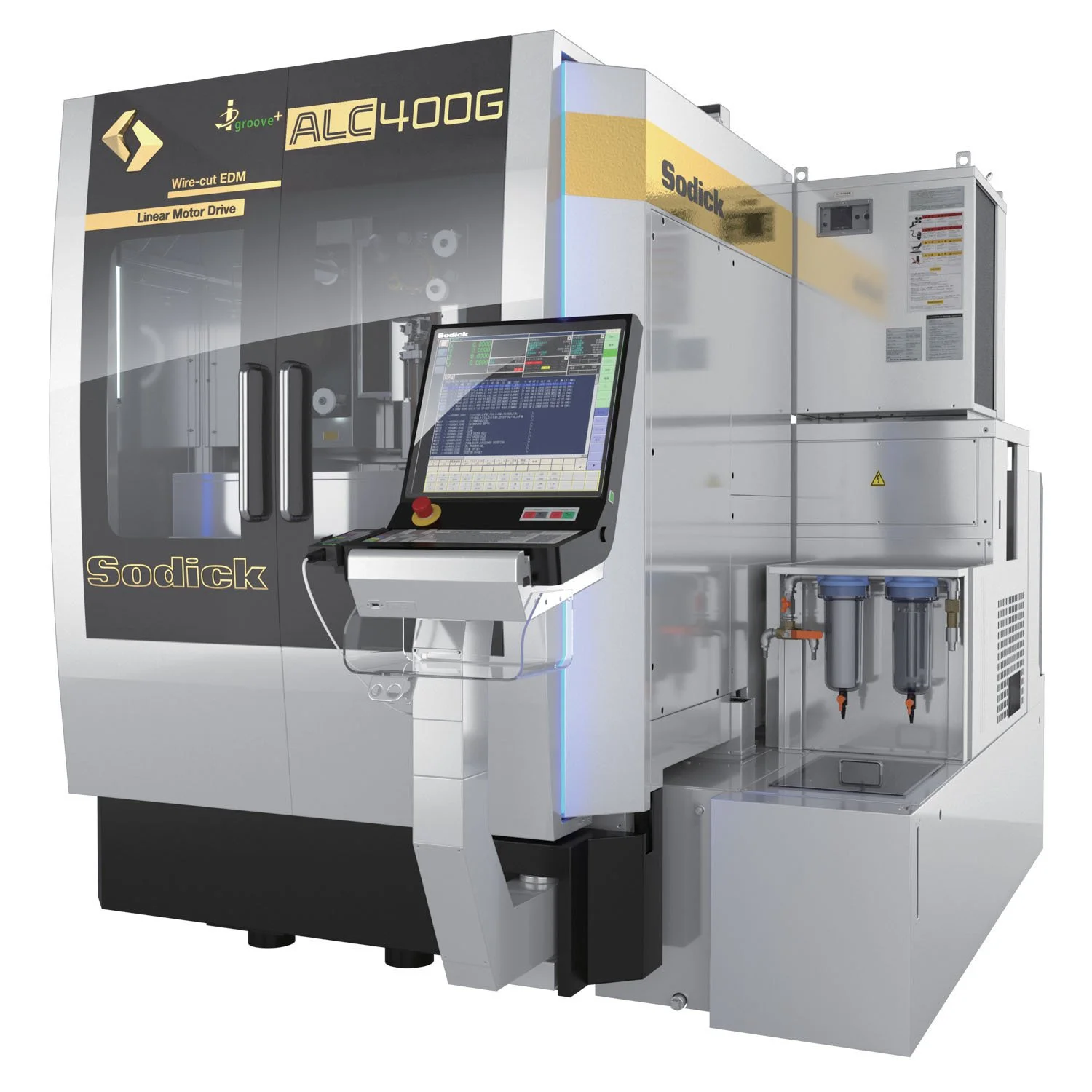

sodick alc400g


-





technical specification

Machine:
X/Y/Z axis travel:
U/V axis travel:
Worktable dimensions (W x D):
Worktank dimensions (W x D x H):
Worktank liquid level, Min. to Max:
Worktank capacity:
Max. workpiece weight:
Max. workpiece dimensions:
Distance from floor to table top:
Machine size (W x D x H):
Machine installation dimenesions:
Machine weight:
Air pressure:
Air consumption:
Electricity consumption:
Accuracy, precision:
Controlled axis:
Taper angle:
Wire diameter:
Wire tension
Wire speed:
EDM method:
Max wire weight:

Dielectric tank:
External dimensions (W x D x H):
Weight, empty (main tank):
Capacity:
Filtration method:
Dielectric:
Deionizer:


400 / 300 / 250 mm
150 / 150 mm
-
850 x 610 x 250 mm
0 - 225 mm
130 L
500 kg
830 x 600 x 230 mm
995 mm
2115 x 3110 x 2230 mm
3350 x 3865 mm
3350 kg
6,5 Bar
30 litre/minute
13 kW, 3-fas, 400 volt
0,0001 mm
4
+/- 25°
ø 0.1 - ø 0.3 mm
3 - 23 N
Max 420 mm/sec
Flushing/submerged
8 kg


650 x 2080 x 1500 mm
400 kg
600 L
3 replaceable paper filter SHF-25E
Water
Harz, barrel of 18 l



Features

options



10 year warranty on positioning accuracy
Linear motor (X, Y, U, V axis)
Absolute linear scales (X, Y, U, V axis)
Ceramic work zone
Remote controller
3-sided rise and fall work tank
Improved ease of operation
Advanced wire tension control
SPW generator
SODICK fine corner control
Energy saving circuit
Digital PIKA W Plus for super surface finish
Automatic water level control
Fixed jet AWT (Automatic wire threader)
Wire end remover
Dielectric cooling unit
Voltage stabiliser
LAN interface
19’’ TFT colour screen
Intelligent Q3vic EDW
Anti-virus software
USB port
Work light
Build-in 20kg wire feeder

0.05 wire spec.
HTP high-voltage circuit
Taper flex 45 NEO (for taper cutting up to 45°)
L-cut (Wire chopper)
Anti-corrosion system (ANCS)
Esprit CAM software offline (regional option)
Automation system: Workpiece changer, electrode changer and robots
Custom colour
WS4P/5P rotary table (indexing or simultaneous movement)
8-axis simultaneous control (Factory option)
Active power restart (UPS)
